Classes and Methods

• A system for doing object oriented programming

• R is both interactive and has a system for object orientation.

  • Other languages which support OOP (C++, Java, Lisp, Python, Perl) generally speaking are not interactive languages

• Object oriented programming is a bit different in R than it is in most languages - even if you are familiar with the idea, you may want to pay attention to the details

Two styles of classes and methods

S3 classes/methods

• Essentially a list with a class attribute on it
• Informal, you can assign any class to any list, which is nonsense
• Sometimes called old-style classes/methods

S4 classes/methods

• More formal and rigorous
• Included with S-PLUS 6 and R 1.4.0 (December 2001)
• Also called new-style classes/methods

Two worlds living side by side

• For now (and the forseeable future), S3 classes/methods and S4 classes/methods are separate systems (but they can be mixed to some degree).

• Each system can be used fairly independently of the other.

• Developers of new projects (you!) are encouraged to use the S4 style classes/methods.

Object Oriented Programming in R

• A class is a description of an thing. A class can be defined using setClass() in the methods package.

• An object is an instance of a class. Objects can be created using new().

• A method is a function that only operates on a certain class of objects.

• A generic function is an R function which dispatches methods. A generic function typically encapsulates a "generic" concept (e.g. plot, mean, predict, ...)

• A method is the implementation of a generic function for an object of a particular class.

Things to look up

• The help files for the methods package are extensive - do read them as they are the primary documentation

• You may want to start with ?Classes and ?Methods

• Check out ?setClass, ?setMethod, and ?setGeneric

• Use class? prefix for help on specific classes, e.g., class?GRanges

Classes

All objects in R have a class which can be determined by the class function

class(1)

## [1] "numeric"

class(TRUE)

## [1] "logical"

class(rnorm(100))

## [1] "numeric"

class(NA)

## [1] "logical"

class("foo")

## [1] "character"

Classes (cont'd)

Data classes go beyond the atomic classes

x <- rnorm(100)
y <- x + rnorm(100)
fit <- lm(y ~ x)  ## linear regression model
class(fit)

## [1] "lm"

names(fit)

##  [1] "coefficients"  "residuals"     "effects"       "rank"
##  [5] "fitted.values" "assign"        "qr"            "df.residual"
##  [9] "xlevels"       "call"          "terms"         "model"

isS4(fit)

## [1] FALSE

Classes (cont'd)

getClass("lm")

## Virtual Class "lm" [package "methods"]
##
## Slots:
##
## Name:   .S3Class
## Class: character
##
## Extends: "oldClass"
##
## Known Subclasses:
## Class "mlm", directly
## Class "aov", directly
## Class "glm", directly
## Class "maov", by class "mlm", distance 2
## Class "glm.null", by class "glm", distance 2

Generics/Methods in R

• S4 and S3 style generic functions look different but conceptually, they are the same (they play the same role).

• When you program you can write new methods for an existing generic OR create your own generics and associated methods.

• Of course, if a data type does not exist in R that matches your needs, you can always define a new class along with generics/methods that go with it

An S3 generic function (in the base package)

The mean function is generic

mean

## function (x, ...)
## UseMethod("mean")
## <bytecode: 0x7f90107b2a08>
## <environment: namespace:base>

So is the print function

print

## function (x, ...)
## UseMethod("print")
## <bytecode: 0x7f8ff61573b0>
## <environment: namespace:base>

S3 methods

methods("mean")

## [1] mean.Date     mean.default  mean.difftime mean.POSIXct  mean.POSIXlt
## [6] mean.quosure*
## see '?methods' for accessing help and source code

An S4 generic function (from the methods package)

The S4 equivalent of print is show

show

## standardGeneric for "show" defined from package "methods"
##
## function (object)
## standardGeneric("show")
## <bytecode: 0x7f8fe6a9a138>
## <environment: 0x7f9006d7cee8>
## Methods may be defined for arguments: object
## Use  showMethods(show)  for currently available ones.
## (This generic function excludes non-simple inheritance; see ?setIs)

The show function is usually not called directly (much like print) because objects are auto-printed

S4 methods

Think of S4 methods as simple functions that perform certain task depending on class

mimicMethod <- function(x) {
    if (is(x, "matrix"))
        method1(x)
    if (is(x, "data.frame"))
        method2(x)
    if (is(x, "IRanges"))
        method3(x)
}

Generic/method mechanism

The first argument of a generic function is an object of a particular class (there may be other arguments)

• The generic function checks the class of the object.

• A search is done to see if there is an appropriate method for that class.

• If there exists a method for that class, then that method is called on the object and we're done.

• If a method for that class does not exist, a search is done to see if there is a default method for the generic. If a default exists, then the default method is called.

• If a default method doesn't exist, then an error is thrown.

Examining Code for Methods

Examining the code for an S3 or S4 method requires a call to a special function

• You cannot just print the code for a method like other functions because the code for the method is usually hidden.

• If you want to see the code for an S3 method, you can use the function getS3method.

  • The call is getS3method(<generic>, <class>)

• For S4 methods you can use the function getMethod

  • The call is getMethod(<generic>, <signature>) (more details later)

Examining Code for Methods

> showMethods("mean")
Function: mean (package base)
x="ANY"
x="AtomicList"
x="CompressedIntegerList"
x="CompressedLogicalList"
x="CompressedNumericList"
x="CompressedRleList"
x="Rle"
x="Views"

S3 Class/Method: Example 1

What's happening here?

set.seed(2)
x <- rnorm(100)
mean(x)

## [1] -0.03069816

• The class of x is numeric
• But there is no mean method for numeric objects!
• So we call the default function for mean.

S3 Class/Method: Example 1

getS3method("mean", "default")

## function (x, trim = 0, na.rm = FALSE, ...)
## {
##     if (!is.numeric(x) && !is.complex(x) && !is.logical(x)) {
##         warning("argument is not numeric or logical: returning NA")
##         return(NA_real_)
##     }
##     if (na.rm)
##         x <- x[!is.na(x)]
##     if (!is.numeric(trim) || length(trim) != 1L)
##         stop("'trim' must be numeric of length one")
##     n <- length(x)
##     if (trim > 0 && n) {
##         if (is.complex(x))
##             stop("trimmed means are not defined for complex data")
##         if (anyNA(x))
##             return(NA_real_)
##         if (trim >= 0.5)
##             return(stats::median(x, na.rm = FALSE))
##         lo <- floor(n * trim) + 1
##         hi <- n + 1 - lo
##         x <- sort.int(x, partial = unique(c(lo, hi)))[lo:hi]
##     }
##     .Internal(mean(x))
## }
## <bytecode: 0x7f8fe606f2a8>
## <environment: namespace:base>

S3 Class/Method: Example 2

What happens here?

set.seed(3)
df <- data.frame(x = rnorm(100), y = 1:100)
sapply(df, mean)

##           x           y
##  0.01103557 50.50000000

• The class of df is data.frame; in a data frame each column can be an object of a different class
• We sapply over the columns and call the mean function
• In each column, mean checks the class of the object and dispatches the appropriate method.
• Here we have a numeric column and an integer column; in both cases mean calls the default method

Calling Methods

• Some methods are visible to the user (i.e. mean.default)

• You should never call methods directly

• Use the generic function and let the method be dispatched automatically

S3 Class/Method: Example 3

The plot function is generic and its behavior depends on the object.

set.seed(10)
x <- rnorm(100)
plot(x)

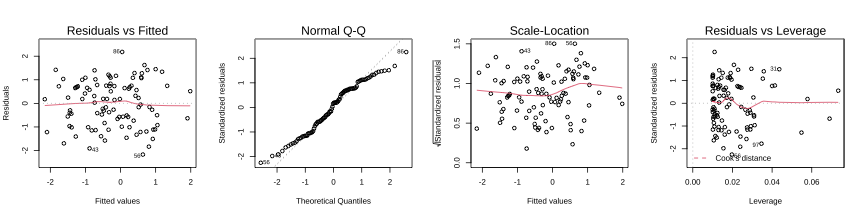

S3 Class/Method: Example 3

For time series objects, plot connects the dots

set.seed(10)
x <- rnorm(100)
y <- x + rnorm(100)
fit <- lm(y ~ x)  ## linear regression model
par(mfrow = c(1, 4))
plot(fit)

Write your own methods!

If you write new methods for new classes, you'll probably end up writing methods for the following generics:

• print/show
• summary
• plot

There are two ways that you can extend the R system via classes/methods

• Write a method for a new class but for an existing generic function (i.e. like print)
• Write new generic functions and new methods for those generics

S4 Classes

Why would you want to create a new class?

• To represent new types of data (e.g. gene expression, space-time, hierarchical, sparse matrices)

• New concepts/ideas that haven't been thought of yet (e.g. a fitted point process model, mixed-effects model, a sparse matrix)

• To abstract/hide implementation details from the user

S4 Class/Method: Creating a New Class

A new class can be defined using the setClass function

• At a minimum you need to specify the name of the class

• You can also specify data elements that are called slots

• You can then define methods for the class with the setMethod function

• Information about a class definition can be obtained with the showClass function

S4 Class/Method: Polygon Class

Creating new classes/methods is usually not something done at the console; you likely want to save the code in a separate file

setClass("polygon",
         representation(x = "numeric",
                        y = "numeric"))

The slots for this class are x and y. The slots for an S4 object can be accessed with the @ operator.

You should never have to access slots directly. You should get/set data out of the class slot using the "accessor" functions (getters and setters).

S4 Class/Method: Polygon Class

• A plot method can be created with the setMethod function.
  • Specify a generic function(plot), and a class signature.

setMethod("plot", "polygon",
          function(x, y, ...) {
                  plot(x@x, x@y, type = "n", ...)
                  xp <- c(x@x, x@x[1])
                  yp <- c(x@y, x@y[1])
                  lines(xp, yp)
          })

Note that the slots of the polygon (the x- and y-coordinates) are accessed with the @ operator.

If things go well, you will not get any messages or errors and nothing useful will be returned by either setClass or setMethod.

S4 Class/Method: Polygon Class

After calling setMethod the new plot method will be added to the list of methods for plot.

showMethods("plot")

## Function: plot (package base)
## x="ANY"
## x="polygon"

Note that the signature for class polygon is listed. The method for ANY is the default method and it is what is called when now other signature matches

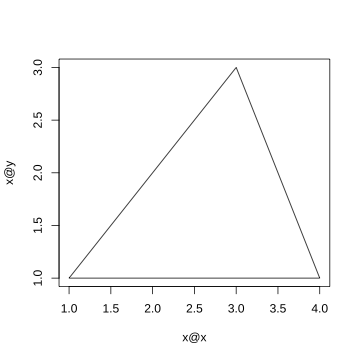

S4 Class/Method: Polygon class

p <- new("polygon", x = c(1, 2, 3, 4), y = c(1, 2, 3, 1))
plot(p)

Class inheritance

• Class inheritance is used when you define a new class which “is almost like this other class but with a little twist”.

• For example ExpressionSet inherits from eSet, and when you look at the class definition you cannot easily see a difference. The difference is that ExpressionSet is meant to contain expression data and has the exprs() accessor.

References

• https://github.com/MalteThodberg/S4-Bioconductor - a collection of references by Malte Thodberg

• https://github.com/nullranges/nullranges - an R package for generation of null ranges via bootstrapping or covariate matching

• Reference classes
